Home Drone DJI Mavic Air 2 Drone – Full Specifications

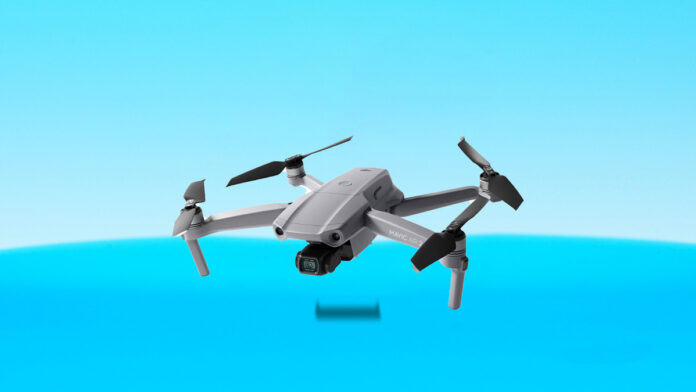

DJI Mavic Air 2 Drone – Full Specifications

0
287
GeneralBrand: DJI
Model: DJI Mavic Air 2
Type: Drone
CameraSensor Type: 1/2 inch CMOS
Sensor Resolution: Effective: 48 Megapixel
Field of View: 84 degree
Maximum Aperture: f/2.8
Minimum Focus Distance: 1.0 Meter
ISO Sensitivity: 100 to 3200 (Auto) 100 to 6400 (Manual)
Video Format: 3840 x 2160p at 24/25/30/48/50/60 fps (MP4/MOV via H.264/AVC, H.265/HEVC, MPEG-4) 2688 x 1512p at 24/25/30/48/50/60 fps (MP4/MOV via H.264/AVC, H.265/HEVC, MPEG-4) 1920 x 1080p at 24/25/30/48/50/60/120/240 fps (MP4/MOV via H.264/AVC, H.265/HEVC, MPEG-4)
Still Image Support: JPEG, DNG
Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC [256 GB Maximum]
Photo Modes: Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Remote Controller / TransmitterDisplay Resolution (Pixels): 3840 x 2160
Operating Frequency: 2.4 GHz, 5.8 GHz
Maximum Operating Distance: 6.21 Miles / 10 km at 2.4 G
Transmitter Power: 26 dBm (2.4 G) 26 dBm (5.8 G)
Connectivity Mode: 1 x Micro-USB, 1 x USB Type-C, 1 x Lightning
Output Power: 38 W
Battery Type: LiPo 3S
Battery Capacity: 3500 mAh / 40.42 Wh
Battery Configuration: 3 S / 11.55 V
Operating Temperature: 32 to 104 degree F / 0 to 40 degree C
Vision SystemVision System: Downward, Forward, Backward
Forward Field of View: 71 degree (Horizontal) 56 degree (Vertical)
Backward Field of View: 44 degree (Horizontal) 57 degree (Vertical)
PerformanceMaximum Horizontal Speed: 62.3 ft/s / 19 m/s (S-Mode) 39.4 ft/s / 12 m/s (P-Mode) 16.4 ft/s / 5 m/s (T-Mode)
Maximum Ascent Speed: 13.1 ft/s / 4 m/s
Maximum Descent Speed: 16.4 ft/s / 5 m/s
Maximum Wind Resistance: 8.5-10.5 m/s (Level 5)
Flight Ceiling: 3.11 Miles / 5000 Meter
Maximum Flight Time: 34 Minutes
Maximum Hover Time: 33 Minutes
Maximum Tilt Angle: 35 degree
Hovering Accuracy: 0.1 Meter Vertical with Vision Positioning, 0.5 Meter Vertical with GPS, 0.1 Meter Horizontal with Vision Positioning, 1.5 Meter Horizontal with GPS
GNSS Support: GPS, GLONASS
GimbalNumber of Axes: 3 (Pitch, Roll, Yaw)
Control Range: Pitch: -135 to 45 degree Roll: -45 to 45 degree Yaw: -100 to 100 degree
Angular Speed: Pitch: 100 degree/s
Flight BatteryBattery Chemistry: Lithium-Ion Polymer (LiPo)
Charging Temperature: 41 to 104 degree F / 5 to 40 degree C
Maximum Charging Power: 38 W
ChargerOutput Voltage: 13.2 V
Power Rating: 38 W
Physical DescriptionNumber of Rotors: 4
Overall Dimensions: 97.0 x 84.0 x 180.0mm (Folded), 253.0 x 77.0 x 183.0mm (Unfolded)
Weight: 570 gm
WarrantyWarranty: 1 year

DJI Mavic Air 2 Drone full Specifications and price.
